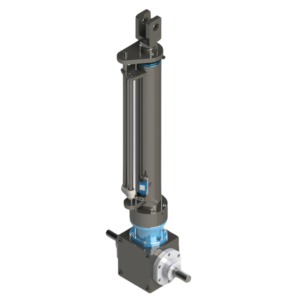

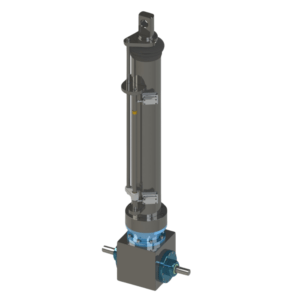

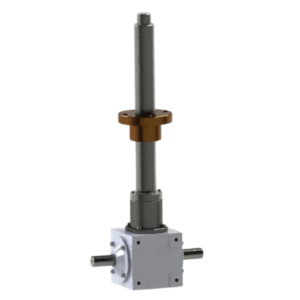

Bevel Gear Screw Jacks
Worm Gear Screw Jack: Bevel Gear Screw Jacks
The advantages of the Bevel Gear Screw Jacks:
- High Speed: Such types of jacks can have higher lifting speeds than the worm gear screw jacks.
- Compact arrangement: The box sizes are compact in comparison to the Worm Gear Screw Jacks.
limitations of the Bevel Gear Screw Jacks:
- Low irreversibility: Mean the load may automatically start to move down when the motor is switched off. In such a scenario one must use a brake motor in place of a regular motor.
- Fixed mounting: Mounting arrangement is mostly fixed type.
- Design Arrangement: These are only available in rotating screw type.
Manufacturing Range:
- Capacity: 1 ton to 50 Ton
- Lifting Speeds: 4mm/Input Revolutions to 20mm/ Input Revolution.
Construction Features:
- Body: Made of S.G. Iron ensures greater strength.
- Bevel Gear: Forged High Strength Alloy Steel Hardened and Tempered.
- Travel Nut: High Strength Cast Bronze ensuring long life and superior performance.
- Lift Screw: Precision rolled or machine cut Screw made from hogh strength Alloy steels.
- Ball Screw and Nut: High Quality High Precision Ball Screw and Nuts are used for optimum strength and speed delivery.
