Simran Flowtech Industries is a renowned name in manufacturing of Steel Tube Hydro-testing Machine peripherals. We are manufacturing these items for the last 20 years and providing them to most tube mill equipment manufacturers and tube mills. Following are the major items manufactured by us:

Filling Valves:

Filling valve is a hydraulic oil pressure operated valve installed in the water filling line of the steel tube hydro-testers. When closed it is designed to hold water pressure developed inside the tube without any leakages.
Available Sizes : 3 inches, 4 inches and 5 inches
Working Pressure : 70 Bar to 600 Bar

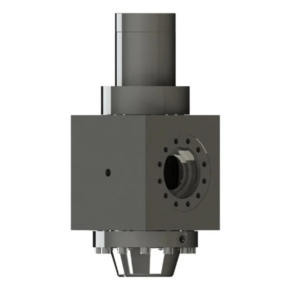

Filling Valve

De-aireating Valves:

De-aireating Valves hydraulic actuated valves installed on opposite sides of filling valves to let the air inside the tube be released to atmosphere during filling of the tube with water. When in a closed position they hold the pressure developed inside the tube without allowing any leakages. These are available in line and offline designs:

Working Pressure : 70 Bar to 600 Bar

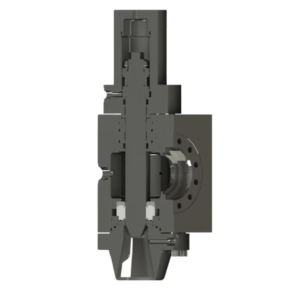

Offline Deairating Valve

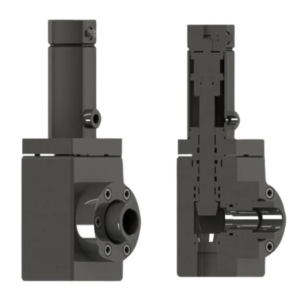

Inline Deairating Valve

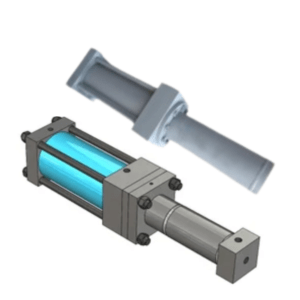

Testing Head Cylinders:

These are specially designed cylinders for tube hydro-testing machines. These are follow from inside to allow the water to flow through them to the steel tube to be tested. The design is such that on one side the filling valve and on the other side pipe head can be mounted easily. These are mounted on fixed as well as moving heads of the hydro-tester.

Working Pressure : 70 Bar to 600 Bar

Hydraulic Pressure Intensifiers:

Hydraulic Pressure Intensifiers are specially designed hydraulic equipment used to intensify the normal water pressure (generally 1-3 Bar) inside the steel tube to desired test pressure (up to 550 Bar) within 2-5 seconds.

Working Pressure : 70 Bar to 600 Bar

These are designed and manufactured by us in varied specifications

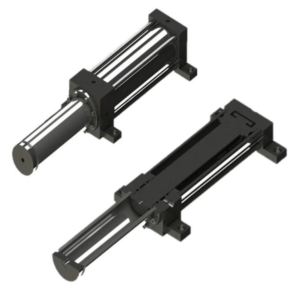

Intensifiers
