Introduction
Simran Flowtech Industries is proudly associated in serving the nation with development of ground launchers for SAMAR AIR DEFENCE SYSTEM recently inducted in the Indian Air Force. Simran Flowtech was involved right from the concept, design and manufacture of the launcher, in a record time of merely 3-Months. Apart from above our company is also manufacturing & delivering several other equipments for the defence sector.
Power is crucial in the realm of industrial applications and machines. The proper amount of power at the correct moment is essential in everything from massive presses that shape metal to intricate systems that regulate precise movements. What occurs, then, if your current hydraulic system lacks the “oomph” required for a certain task? This is where hydraulic pressure intensifiers, which are ingenious gadgets that may greatly increase your hydraulic power without requiring a total system overhaul, come into action. We are the best Hydraulic Pressure Intensifiers Supplier.
Consider that even if your water hose has a respectable amount of pressure, you require a considerably more powerful jet to get rid of a refractory area. You would likely utilize a nozzle that concentrates the water flow, increasing its power, rather than replacing the complete water supply system. The idea behind hydraulic pressure intensifiers is the same, but they use hydraulic fluid.
What Exactly is a Hydraulic Pressure Intensifier
Fundamentally, a hydraulic pressure intensifier is a machine that uses a smaller volume of hydraulic fluid to convert a relatively low-pressure hydraulic fluid input into a significantly greater pressure output. Comparable to a hydraulic “booster.” Without needing to operate your entire hydraulic system at that greater, frequently unnecessary pressure, it’s a small and effective approach to deliver the high pressure you need precisely where you need it. We are the best Hydraulic Pressure Intensifiers in Haryana.
Why Choose SFI Mechatronic Solutions Pvt. Ltd
Now that you understand the immense value of hydraulic pressure intensifiers, let’s talk about why SFI Mechatronic Solutions Pvt. Ltd. stands out as your go-to Hydraulic Pressure Intensifiers Manufacturer.
- Pioneering Engineering Excellence: We have continuously provided state-of-the-art engineering solutions since our founding in 2004. We take great satisfaction in using cutting-edge electro-mechanical and electro-hydraulic technologies to tackle challenging engineering difficulties. Our ability and dedication are demonstrated by the fact that we were able to produce ground launchers for the SAMAR Air Defense System from design to manufacturing in a record three months.
- Unwavering Dedication to Quality: At SFI Mechatronic Solutions, quality is the cornerstone of all we do, not just a catchphrase. Because our manufacturing procedures are ISO 9001 certified, every step is subject to stringent examination. For large components, we use sophisticated CNC machining, which ensures accuracy and sturdy construction for enduring, trouble-free operation.
- Personalization and Tailored Approaches: We recognize that each application is distinct. Because of our experience, we can create hydraulic pressure intensifiers that are perfectly tailored to your needs and integrate seamlessly with your current systems. We offer solutions rather than just goods.
- Sturdy and Dependable Designs: We use 3D modeling techniques to ensure that our hydraulic pressure intensifiers are precisely and efficiently built. Even in harsh working situations, our products’ strong and durable designs provide excellent performance and a long operational life.
- Comprehensive Hydraulic Expertise: In addition to intensifiers, we also offer a wide range of premium hydraulic cylinders, bevel gearboxes, linear actuators, and hydraulic rotary unions. since of our extensive experience, we are able to provide comprehensive and well-thought-out solutions since we comprehend the entire hydraulic environment.
- Customer-Centric Approach: By improving the performance of our customers’ machines, we hope to empower them. We are committed to exceeding expectations and providing top-notch quality. By offering outstanding goods and services that maximize performance, improve efficiency, and propel success for companies across industries, we hope to establish enduring trust and solid connections.
- Made for the world in India: As a globally minded Indian manufacturer, we take pride in supporting the industrial development of our country while providing services to customers in Australia and the United Kingdom. Our dedication to technological development guarantees that our goods will always be at the forefront of innovation on a worldwide scale.
Applications of Hydraulic Pressure Intensifiers
- One of the most well-known uses is perhaps waterjet cutting. Extremely high-pressure water, frequently amplified to thousands of bars, is used by waterjet cutting machines to precisely cut through nearly any material without heat deformation, including heavy metals, composites, and thin polymers. In order to provide the required cutting power, intensifiers are essential.
- Hydroforming: This technique is used in the automotive and aerospace sectors to shape metal blanks using a high-pressure fluid. Intensifiers supply the tremendous pressure needed for this sophisticated manufacturing process, enabling complicated geometries and lighter, stronger products.
- Bolt Tensioning: Using a wrench to tighten bolts is insufficient for big industrial fasteners, such as those found in wind turbines, bridges, or heavy machinery. Intensifier-powered hydraulic bolt tensioners use tremendous force and accuracy to stretch the bolt, guaranteeing a solid and safe attachment.
- Hydraulic Presses: Many specialized presses for forging, stamping, or compacting materials rely on intensifiers to create the intense forces required to form and consolidate materials, but some presses use regular hydraulic pumps.
- Demolition Tools: To break apart concrete, rock, or steel structures, hydraulic breakers, cutters, and crushers used in construction and demolition projects need extremely high pressure bursts. When needed, portable intensifiers can supply this power.
- In the oil and gas industry, intensifiers are essential because running downhole instruments and testing pipes, valves, and wellheads frequently require extremely high pressures.
- Subsea Operations: Compact hydraulic systems are frequently used by remotely operated vehicles (ROVs) and other subsea equipment. These systems can power high-force tools for underwater maintenance, inspection, and building thanks to intensifiers.
- Testing and Research: Intensifiers are used by manufacturers and laboratories for a variety of testing purposes, such as fatigue testing materials, hose and container rupture testing, and research and development simulations of extreme pressure circumstances.
Specification Table of Hydraulic Pressure Intensifiers
| Parameter | Specification |
|---|---|
| Product | Hydraulic Pressure Intensifiers |
| Intensification Ratio | 2:1, 4:1, 6:1, 10:1 (Custom Ratios Available) |
| Max Output Pressure | Up to 1500 bar |
| Input Pressure Range | 30 to 250 bar |
| Flow Capacity | 1 to 20 LPM (based on model) |
| Mounting Type | Inline, Sub-Plate, or Flange Mount |
| Material | Alloy Steel / SS304 / SS316 (as per application) |
| Sealing | NBR / Viton / PU (based on medium) |
| Temperature Range | -10°C to +80°C |
| Medium | Hydraulic Oil ISO VG 32/46 |
| Control Type | Manual / Solenoid / Pilot Operated |
| Cycle Time | Adjustable (based on flow and pressure) |
| Certification | ISO 9001:2015 Certified |
| Service Support | Pan India Network with AMC Option |
| Warranty | 1 Year Standard Warranty |
Benefits of Hydraulic Pressure Intensifiers
- The most significant advantage is probably cost-effective high pressure. An intensifier enables you to create localized high pressure precisely where and when you need it, saving you money on a complicated, high-pressure pump system that could be unnecessary for your entire operation. Both initial equipment expenses and continuous energy use are greatly reduced as a result.
- Compact Design, Big Power: Considering the power they produce, intensifiers are incredibly small. This is essential for applications like transportable machinery, specialty tools, or integrated systems that have limited space. They make it possible for smaller hydraulic cylinders to exert the same force at lower pressure than much bigger ones.
- Energy Efficiency: Intensifiers keep the entire hydraulic system from running at high pressures all the time by only producing high pressure when it is needed. This decreases your operational costs and minimizes energy waste.
- System Simplification: Your hydraulic system design can be made more efficient by them. You can utilize intensifiers at particular workstations or machine parts and retain a lower overall system pressure rather than running high-pressure lines throughout your building. This makes maintenance easier and lowers the amount of high-pressure parts.
- Adaptability and Versatility: The hydraulic pressure intensifiers are very adaptable. They are perfect for adding new high-pressure functions or modernizing machinery without requiring a total overhaul because they are relatively easy to connect into existing hydraulic systems. Additionally, they can be made to operate continuously or intermittently and are compatible with a variety of fluids.
- Enhanced Safety: There may be safety hazards when running a whole hydraulic system at very high pressures. By using an intensifier to isolate high pressure to particular spots, the overall system pressure stays lower, improving operator safety and prolonging the life of other parts.
- Precision and Control: In delicate procedures, modern intensifiers provide exact force application due to their exceptional output pressure control. In manufacturing operations that demand precise tolerances and reliable performance, this is essential.
- Decreased Heat Generation: By increasing pressure only when necessary, intensifiers can help the hydraulic system as a whole produce less heat, which promotes more stable operation and longer component life.

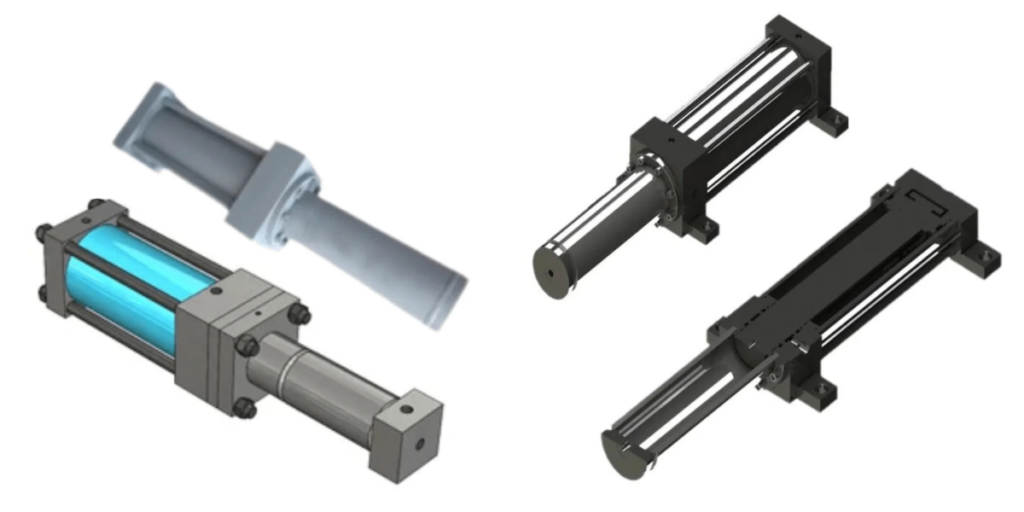

Types of Hydraulic Pressure Intensifiers
1. In-line Hydraulic Pressure Intensifiers
- These are mounted directly into the hydraulic line. They automatically boost pressure in a section of the system. They are compact, require no external power, and are easy to install.
Applications: Clamping systems, hydraulic presses, injection molding machines.
2. Oscillating Hydraulic Intensifiers
- This type uses a piston system to create continuous pressure intensification. They can maintain high pressure for extended operations.
Applications: Industrial automation, robotic operations, pressure testing equipment.
3. Single-stroke Intensifiers
- These deliver a single boost of high pressure per activation. Ideal for systems that need temporary, quick bursts of force.
Applications: Punching, pressing, crimping, and riveting machines.
4. Air-to-Hydraulic Pressure Intensifiers
- These units use compressed air to increase hydraulic pressure. They are ideal for systems with air power but need hydraulic output.
Applications: Portable hydraulic tools, small presses, and air-powered systems.
5. Custom Hydraulic Intensifiers
- We also offer customized solutions designed as per your specific requirements in terms of pressure ratio, size, mounting, and operating environment.
Conclusion
More than just parts, hydraulic pressure intensifiers are strategic assets that enable industries to increase productivity, accuracy, and cost reduction. They enable existing systems to function at new levels by strategically increasing hydraulic pressure where and when it’s required, simplifying and enabling difficult jobs. We are the best Best Hydraulic Pressure Intensifiers Manufacturer.
A hydraulic pressure intensifier is perhaps the solution you’ve been searching for if your operations require accurate, high-pressure solutions without incurring the costs of completely new hydraulic systems. And SFI Mechatronic Solutions Pvt. Ltd. is prepared to work with you to select a Hydraulic Pressure Intensifiers Manufacturer you can rely on. With our extensive engineering knowledge, dedication to excellence, and wide range of hydraulic and mechatronic solutions, we are committed to assisting you in realizing the maximum potential of your equipment and advancing your industrial operations.
