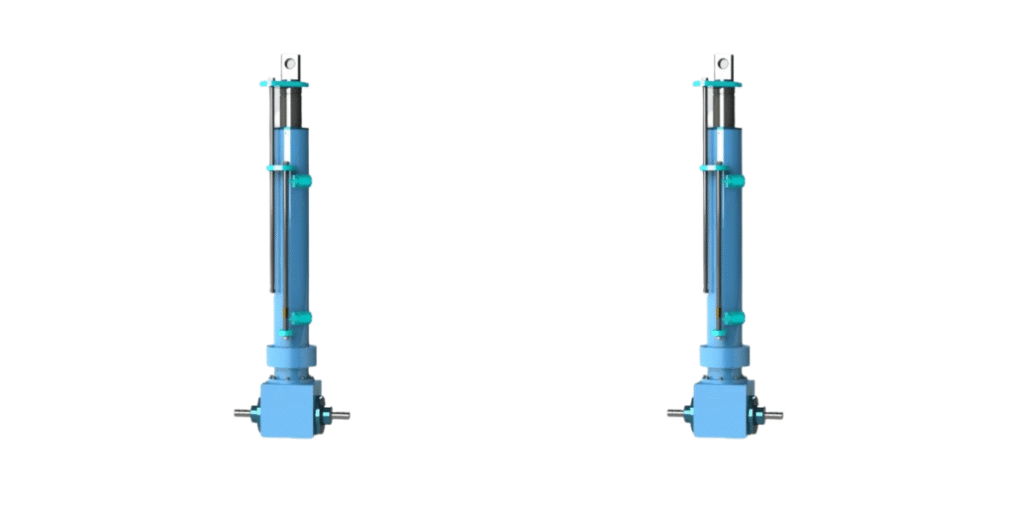

Hydro Power Plant Hydraulic Cylinders Haryana
Introduction
SFI Mechatronic Solutions Pvt. Ltd. is proudly associated in serving the nation with development of ground launchers for SAMAR AIR DEFENCE SYSTEM recently inducted in the Indian Air Force. Simran Flowtech was involved right from the concept, design and manufacture of the launcher, in a record time of merely 3-Months. Apart from above our company is also manufacturing & delivering several other equipments for the defence sector.
Renewable energy is now a need rather than an option in today’s globe. Hydropower, which uses the force of rushing water to generate electricity, is one of the most dependable forms of renewable energy. Hydraulic cylinders, precisely constructed parts that regulate movement, force, and efficiency in turbines, gates, and control mechanisms, are at the core of many hydro power plants.Hydro Power Plant Hydraulic Cylinders are essential to the smooth, secure, and dependable functioning of the state of Haryana, which is quickly developing its energy infrastructure. And one brand sticks out when it comes to producing, maintaining, and providing top-notch hydraulic cylinders: Mechatronic Solutions SFI Pvt. Ltd. We are the best Hydro Power Plant Hydraulic Cylinders Supplier.
What Are Hydro Power Plant Hydraulic Cylinders
A mechanical actuator that transforms hydraulic energy (fluid pressure) into linear motion is called a hydraulic cylinder. These cylinders are employed in hydroelectric facilities to carry out several heavy-duty operations, including:Even in the face of tremendous pressure and environmental circumstances, hydraulic cylinders guarantee the plant’s safe and effective operation. They supply the force needed to precisely and consistently move large mechanical components. We are the best Hydro Power Plant Hydraulic Cylinders Manufacturer.
Why Choose SFI Mechatronic Solutions Pvt. Ltd
- Unmatched Engineering Prowess: Our team of engineers doesn’t just follow a blueprint. We analyze your specific application, water pressure, flow rates, and environmental conditions to design a cylinder that offers superior performance and a longer service life. We use advanced modeling and simulation tools to predict and eliminate points of failure before manufacturing even begins.
- Deep-Dive Expertise in the Power Sector: We don’t just fix cylinders; we understand the ecosystem of a hydro power plant. Our engineers are trained to understand the unique demands of turbine governors, inlet valves, and spillway gate systems. This contextual knowledge allows us to not just repair a component but to optimize it for its specific application.
- A Full-Service, In-House Facility: We are a one-stop solution. From initial inspection and disassembly to machining, welding, honing, and testing, every step of the repair and reconditioning process is handled under our own roof in our state-of-the-art facility. This gives us complete control over quality and timelines.
- Precision Machining and Honing Capabilities: The heart of a successful cylinder repair is restoring the bore and rod to their original perfection. We possess advanced CNC machining centers and honing machines capable of handling the large dimensions of hydro cylinders, ensuring a mirror-like finish that guarantees optimal seal life and performance.
- Rigorous Testing and Quality Assurance: Before any cylinder leaves our facility, it undergoes a rigorous testing protocol. We use high-pressure testing setups to simulate actual operating conditions, checking for leaks, performance under load, and overall integrity. We provide certified test reports for complete peace of mind.
- Genuine and Customized Seal Kits: We use only OEM-grade or superior-quality seal materials compatible with hydraulic oils and resistant to water. We can also customize seal kits for cylinders where original parts are obsolete, ensuring your legacy equipment keeps running smoothly.
- Proactive and Preventive Maintenance Support: Beyond repairs, we advocate for a proactive approach. We offer maintenance contracts, condition monitoring, and expert advisory services to help you identify potential issues before they lead to unplanned shutdowns, saving you time and money in the long run.
- Commitment to Timely Delivery: We understand that every hour of downtime costs you revenue. Our project management team is dedicated to providing realistic timelines and adhering to them strictly, ensuring you get your critical components back in action as quickly as possible without compromising on quality.
- A Track Record of Reliability: Our long-standing relationships with major players in the power, steel, and infrastructure sectors are a testament to our quality and reliability. When we take on a project, we see it through to its successful completion, on time, every time.
- Long-Standing Partnerships: We believe in building long-term relationships, not just completing one-off transactions. We take the time to understand your unique challenges and become an extension of your maintenance team, providing consistent support and trusted advice for years to come.
Applications of Hydraulic Cylinders in Hydro Power Plants
1. Spillway Gate Operation
- Spillways control excess water flow in a dam to prevent flooding. Hydraulic cylinders operate radial or tainter gates that release controlled amounts of water safely downstream.
2. Intake Gate Control
- At the intake section, hydraulic cylinders open and close gates to regulate water entering the turbines. This ensures balanced energy generation and protects turbine components from overload.
3. Turbine Control Systems
- Modern hydro turbines rely on adjustable blades for optimized efficiency. Hydraulic cylinders help adjust these blades (guide vanes or wicket gates) for maintaining the desired rotational speed and load.
4. Sluice Gate Operation
- Sluice gates are used to manage sediment flow and water levels. Hydraulic cylinders offer precise, powerful actuation to handle large gates efficiently.
5. Dam Gate and Valve Actuation
- In large dams, multiple gates and valves are used for water release, maintenance, and flood control. Hydraulic cylinders ensure smooth, synchronized operation of all gates.
6. Trash Rack Cleaning Machines
- Cylinders are used in trash rack cleaning systems that remove debris, ensuring continuous and efficient water flow into turbines.
7. Penstock Maintenance Systems
- Hydraulic actuators are employed in penstock control and maintenance mechanisms to manage pressure and flow safely.
Table Specifications of Hydraulic Cylinders in Hydro Power Plants
| Parameter | Specification Range |
|---|---|
| Material | Hydraulic Cylinders in Hydro Power Plants |
| Bore Diameter | 50 mm to 1000 mm |
| Stroke Length | Up to 8000 mm |
| Working Pressure | Up to 350 bar |
| Material Used | Alloy Steel, EN8, EN19, Stainless Steel |
| Seal Type | PU / NBR / Viton (High Temperature) |
| Surface Treatment | Hard Chrome Plated / Nickel Coated / Phosphate Finish |
| Mounting Type | Clevis, Trunnion, Flange, Foot Mount |
| Operating Medium | Hydraulic Oil / Water-Glycol |
| Temperature Range | -20°C to +120°C |
| Corrosion Resistance | Marine Grade Paint / Stainless Construction |
| Testing Standards | ISO 10100 / DIN 24333 |
Benefits of Hydraulic Cylinders in Hydro Power Plants
- Governing the Turbine Speed: The Heart of Control The most crucial job of a hydraulic cylinder in a power plant is to control the turbine’s speed. As the demand for electricity on the grid fluctuates, the turbine must spin at a constant speed to maintain the correct frequency The Governor System uses high-pressure hydraulic cylinders to adjust the guide vanes or the blades of the turbine, controlling the amount of water flowing onto it. This precise movement ensures stable power generation, preventing damage to the turbine and maintaining grid stability.
- Operating the Main Inlet Valve: The Master Gate Before water even reaches the turbine, it passes through a massive main inlet valve (like a Butterfly or Spherical Valve). This valve acts as the main shut-off switch. In an emergency or for maintenance, it must close swiftly and securely. Powerful hydraulic cylinders provide the immense force needed to operate these giant valves, ensuring the safety of the entire system.
- Managing the Spillway Gates: Taming the Water Flow Dams have spillways to release excess water, especially during heavy monsoons, to prevent overtopping. The massive gates on these spillways are raised and lowered by gigantic hydraulic cylinders. This precise control over water levels is vital for flood management, irrigation, and the structural safety of the dam itself.
- Actuating Kaplan Turbine Blades: For Maximum Efficiency In Kaplan-type turbines (common in low-head sites), the turbine blades themselves can be adjusted to optimize efficiency based on water flow. Hydraulic cylinders inside the turbine hub perform this delicate adjustment, ensuring the plant generates the maximum possible power from the available water.
- Regulating Turbine Guide Vanes: Inside the powerhouse, water rushes onto the turbine blades to make them spin. The guide vanes are like a throttle—they control the amount and angle of water hitting the turbine. Hydraulic cylinders adjust these vanes with pinpoint accuracy, ensuring the turbine runs at optimal efficiency regardless of the water flow, maximizing electricity output.
- Operating Intake Gates: Before water even reaches the turbine, it flows through intake tunnels. These tunnels are sealed off by large gates for maintenance or in case of an emergency. Hydraulic cylinders are used to lower and raise these intake gates, ensuring the safety of personnel and equipment downstream.
- Actuating Butterfly Valves: Large valves control the flow of water in the penstocks (the large pipes leading to the turbines). Hydraulic cylinders provide the torque to open and close these massive valves reliably.
Types of Hydraulic Cylinders in Hydro Power Plants
1. Double Acting Hydraulic Cylinders
- These cylinders apply force in both directions — extension and retraction — by using hydraulic pressure on both sides of the piston.
- Applications: Used in gate operations, where precise control in both directions is needed.
2. Single Acting Hydraulic Cylinders
- They work in one direction using hydraulic pressure, with the return motion achieved by external force or gravity.
- Applications: Ideal for sluice gates and spillway mechanisms where retraction is not frequently required.
3. Telescopic Hydraulic Cylinders
- Comprising multiple stages, telescopic cylinders provide long strokes in compact designs.
- Applications: Used in large gate lifting systems or where space is limited.
4. Mill Type Hydraulic Cylinders
- These cylinders are heavy-duty and designed for high-pressure applications.
- Applications: Common in dam gate operations and turbine control systems.
5. Tie-Rod Hydraulic Cylinders
- Constructed with tie rods that hold the cylinder barrel and end caps together, these are reliable and easy to maintain.
- Applications: Suitable for moderate pressure applications in smaller hydro units.
Conclusion
Every effective hydroelectric plant relies on hydraulic cylinders for smooth gate movement, accurate turbine control, and general operational safety. It is impossible to overestimate the importance of high-quality hydraulic systems in a state like Haryana, where the expansion of industry and renewable energy go hand in hand.
SFI Mechatronic Solutions Pvt. Ltd. is your go-to source for dependable, high-performing hydraulic cylinders for hydro power plants in Haryana. SFI provides solutions that increase India’s hydropower efficiency through unparalleled engineering expertise, cutting-edge production, and customer-focused service.
